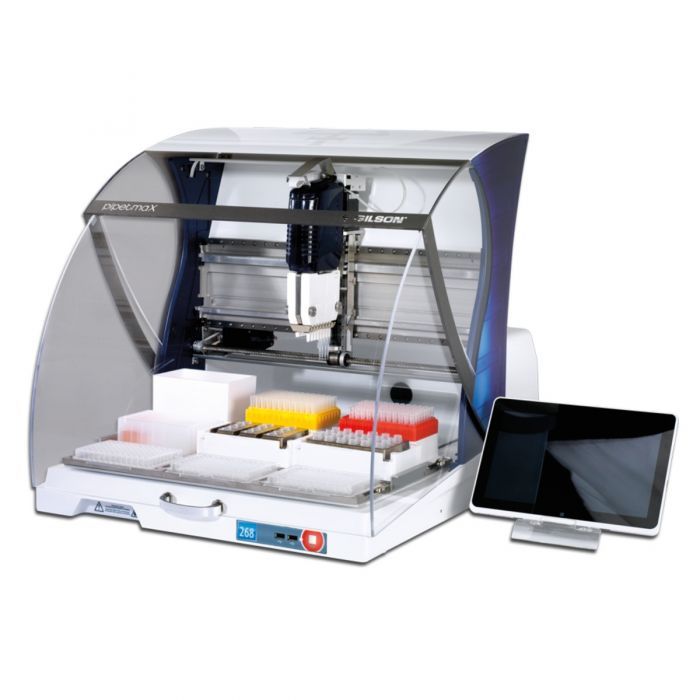

PIPETMAX
Consistency, Accuracy, Reproducibility
PIPETMAX, built upon PIPETMAN® technology, helps to reduce costly technical replicates and helps maximize reproducibility by eliminating inconsistencies due to common pipetting errors. The automated system frees up time devoted to tedious pipetting jobs that improve lab productivity and lets you get to results faster.
A Versatile Open System
The hardware and software of the PIPETMAX are customizable to fit the specific needs of the assay, allowing you to configure and customize runs to any reagent, kit, or protocol.
With intelligent tip management, our pipette heads allow up to 8 tips to be used simultaneously.
With a volume range from 1 µL to 1200 µL, PIPETMAX is an ideal solution for qPCR, NGS reactions, and cell-based assays.
Several pre-developed, validated protocols are available for download while custom protocols can be written to accommodate any workflow.
Space-saving
The small footprint lets it easily fit on a lab bench or under a fume hood. At a weight just under 40 pounds, it’s easy to move to the location most suited for the assays at hand.
Specifications
| PIPETMAX® 268 | ||||||
Volumetric Specifications for Transfers |
Maximum Permissible Errors | ||||||
| Pipette Head | Volume of Distilled Water (μL) |
Systematic Error (μL) | Random Error (μL) | Systematic Error (%) | Random Error (%) | ||
| MAX 8x20 | 1 | ±0.08 | ≤0.05 | 8 | 5 | ||
| 10 | ±0.15 | ≤0.10 | 1.5 | 1 | |||
| 20 | ±0.25 | ≤0.12 | 1.25 | 0.6 | |||
| MAX 8x200 | 20 | ±0.50 | ≤0.16 | 2.5 | 0.8 | ||
| 100 | ±1.00 | ≤0.30 | 1 | 0.3 | |||
| 200 | ±2.00 | ≤0.50 | 1 | 0.25 | |||
| MAX 4x1200 | 50 | ±4.00 | ≤0.70 | 8 | 1.4 | ||
| 120 | ±4.00 | ≤0.70 | 3.33 | 0.58 | |||
| 600 | ±6.00 | ≤1.50 | 1 | 0.25 | |||
| 1200 | ±9.60 | ≤1.80 | 0.8 | 0.15 | |||
DIAMOND® Tips Sterilized option available for some tips. |
DIAMOND® Tips | Volume Range (μL) | DIAMOND® Filter Tips | Volume Range (μL) | |||
| D200 | 1–20 | DF30 | 1–20 | ||||
| DL10 | 1–20 | DFL10 | 1–10 | ||||
| D200 | 20–200 | DF200 | 20–200 | ||||
| D1000 | 100–1000 | DF1000 | 100–1000 | ||||
| D1200 | 100-1200 | DF1200 | 100-1200 | ||||
| Communication | USB | ||||||
| Connections |
3 USB host ports and one USB device port; Two inputs (contact closure, TTL); two relay outputs, and one switched +12V DC 1A output; NOTICE: Switching voltages higher than 30V or greater than 1A of current may damage the instrument. |
||||||
| Control | Touchscreen tablet, laptop, or desktop computer control via USB and TRILUTION® micro software | ||||||
| Dimensions (W x D x H) |
PIPETMAX 268 with rotating cover: 54.4 x 65.5 x 53.1 cm (21.4 x 25.8 x 20.9 in) PIPETMAX 268 without cover: 50.8 x 64.3 x 49.5 cm (20 x 25.3 x 19.5 in) |
||||||
| Environmental Conditions |
Indoor use Altitude: up to 2000 m; Temperature range: 5°–40°C Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C |
||||||
