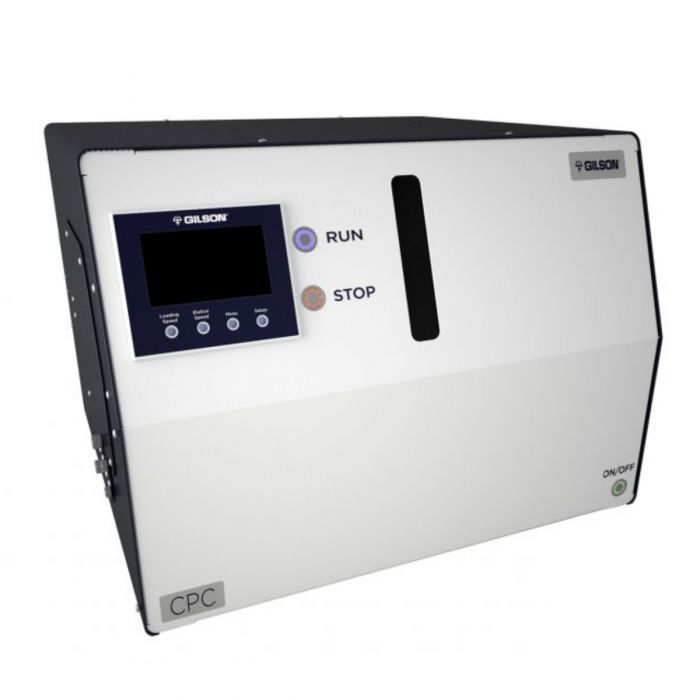

CPC-250
Natural product chemistry involves the isolation of active compounds from complex, crude, natural product extracts. Gilson CPC is a cost effective alternative to common purification techniques, such as flash and prep HPLC, that yields a high quantity of pure compounds. CPC is your ideal solution for natural extract fractionation, natural compound purification, and protein separations.
Gilson's reusable, silica-free centrifugal partition chromatography (CPC) columns offer high injection capacities of milligram to multi-kilograms resulting in 95% recoveries with 99% purity or better.
Increased Savings
CPC columns use approximately five times less solvent than more traditional columns, saving you money on solvent and disposal costs. Likewise, the reusable columns eliminates column replacement and silica recycling costs.
Improved Purification Efficiency
CPC columns offer high sample injection capacities from milligrams to kilograms. With these injection rates, achieve 95% recoveries with greater than 99% purity because there is no irreversible absorption or denaturation of fragile molecules as in other methods. CPC columns tackle tough separations of complex samples in a single step without prior purification, making it an ideal choice for natural product isolation, protein purification, and more.
Numerous Column Options
Choose from a variety of injection capacities and flow rates to optimize your purification:
Model | Injection Capacity | Max ELUTION FLOW RATE | Maximum Pressure |
CPC 250 | Up to 6g | 15 mL/min | 100 bar (1450 psi) |
CPC 1000 | Up to 30 gr | 50 mL/min | 80 bar (1160 psi) |
CPC 1000 PRO | Up to 100 gr | 350 mL/min | 80 bar (1160 psi) |
All CPC columns can be connected to either a PLC Purification System or a Gilson modular HPLC system in place of a traditional column.
Specifications
| CPC-250/1000/1000Pro | |||
| Model | CPC 250 | CPC 1000 | CPC 1000 Pro | |||
| Weight | 70 kg (154 lbs) | 120 kg (264 lbs) | 115 kg (253 lbs) | |||
| Pack Size | 1 | 1 | 1 | |||
| Pack Size Unit | Each | Each | Each | |||
| Column Capacity | 250 mL | 1000 mL | 1000 mL | |||
| Injection Range | Up to 6 g | Up to 30 g | Up to 100 g | |||
| Maximum Rotation Speed | 100-3000 rpm | 100-1500 rpm | 100-2000rpm | |||
| Maximum Pressure | 100 bar (1450 psi) | 80 bar (1160 psi) | 80 bar (1160 psi) | |||
| Typical Flow Rate | Up to 15 mL/min | Up to 50 mL/min | Up to 350 mL/min | |||
Supporting Literature
| Brochures | |
|---|---|
| Purification Brochure | Download (EN) |
| Verity Brochure | Download (EN) |
| Flyers | |
| PLC Purification With CPC Column | Download (EN) |
| Articles | |
| CPC Cost Effective Approach to Purification of Cannabinoids | Download (EN) |
| Declaration of Conformity | |
| CPC Declaration of Conformity | Download (EN) |
| User's Guides | |
| CPC User's Guide | Download (EN) |
| Technical Notes | |
| Introduction to Centrifugal Partition Chromatography | Download (EN) |
| Purification of Cannabidiol from Cannabis sativa | Download (EN) |
